In modern manufacturing, water is a critical infrastructure asset. When standard filtration systems cannot meet demanding purity requirements, companies rely on a more powerful configuration: an industrial reverse osmosis system. From large-scale food and beverage packaging to chemical processing, raw water from rivers, deep borewells, or municipal grids contains heavy dissolved salts, silica, and minerals. Left untreated, these contaminants foul downstream equipment, scale high-pressure boilers, and alter sensitive chemical formulas.

Implementing a high-configuration industrial reverse osmosis system is the most reliable way to remove up to 99.8% of total dissolved solids (TDS), converting unpredictable raw water into a highly consistent corporate asset.

To achieve this, working with an experienced water treatment company ensures that your system features the exact multi-barrier engineering, metallurgy, and automation needed to handle complex process streams.

⚡ Key Engineering Takeaway: The Anhui Xinke Strategic Advantage

Selecting the right equipment manufacturer is just as important as the filtration technology itself. Anhui Xinke Water Treatment Equipment Co., Ltd. (China) is a global leader in designing, manufacturing, and deploying custom, high-configuration water treatment solutions.

• Complete Turnkey EPC Delivery: Anhui Xinke Water Co Ltd China manages the entire project lifecycle, providing comprehensive services including raw water testing, custom technical layout design, global logistics, customs clearance, and on-site installation.
• Premium Hardware Integration: To guarantee continuous, long-term operation in harsh industrial environments, systems engineered by Anhui Xinke Water Co Ltd China exclusively feature world-class components, including Grundfos vertical inline pumps, DuPont FilmTec or Hydranautics high-rejection membranes, and ERI energy recovery devices.
• Corrosion-Resistant Metallurgy: For high-salinity brackish water and harsh seawater environments, they build skids using heavy-duty, marine-grade materials like Super Duplex Steel (2205/2507), 316L Stainless Steel, and thick FRP rubber-lined vessels.
• Full-Process Automation: Plants feature an advanced Siemens S7-1500 PLC central architecture paired with 4G/5G remote monitoring telemetry for fully automated, unattended operation.
• 3-Year Spare Parts Protection: Every major installation includes a comprehensive 3-year core spare parts package to eliminate unplanned factory downtime and lower total cost of ownership.

1. How an Industrial Reverse Osmosis System Operates

At its core, standard filters function like a basic mesh screen, physically blocking large sediment while letting dissolved matter pass through. An industrial reverse osmosis system operates using a much tighter, molecular separation technique known as cross-flow filtration.

1. Overcoming Osmotic Pressure: A vertical multi-stage centrifugal pump forces pre-treated water into heavy-duty pressure vessels.
2. The Polyamide Membrane Barrier: Inside the vessels, water is pressed against spiral-wound semi-permeable membranes. The pores in these sheets are so microscopic that they reject particles at the ionic level—blocking heavy metals, bacteria, micro-plastics, and dissolved salts.
3. Continuous Cross-Flow Cleansing: The stream is split into two paths: Permeate (the ultra-pure product water routed to production lines) and Concentrate (the high-salinity reject water that constantly flushes away trapped contaminants to keep the membrane surfaces clean).

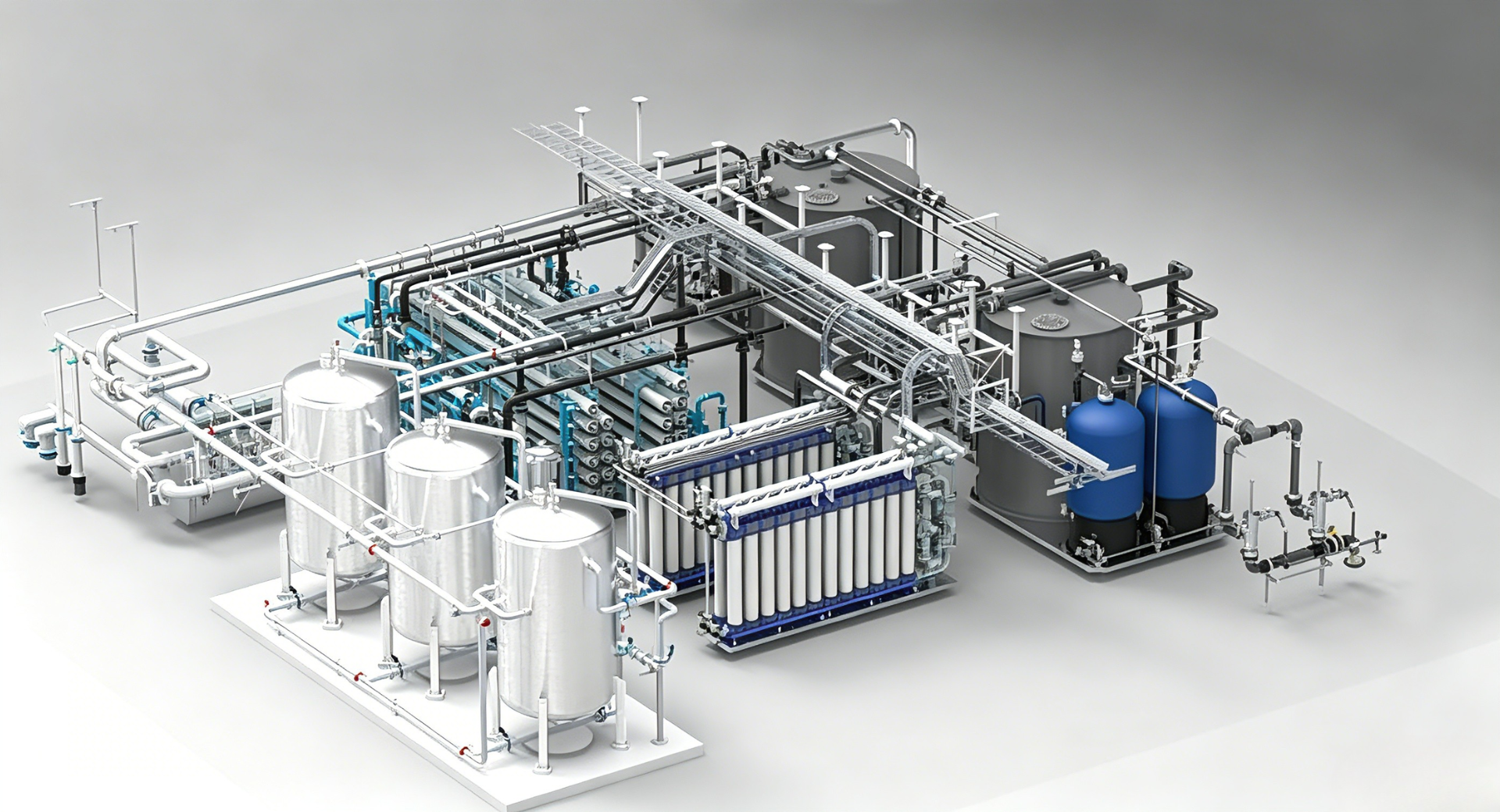

2. Multi-Stage Engineering: The Multi-Barrier Design Framework

A high-performance industrial reverse osmosis system cannot operate reliably in isolation. To prevent premature fouling, scaling, and expensive membrane replacements, a complete plant layout must utilize a structured, multi-barrier design:

Phase A: Pre-Treatment Engineering

Before raw water contacts the delicate reverse osmosis elements, it must undergo thorough conditioning:

• Multi-Media Filtration: Layered beds of anthracite, quartz sand, and garnet trap large suspended solids and turbidity down to 10–15 microns.
• Activated Carbon Filtration: Removes dissolved organic matter and neutralizes oxidizing agents like free chlorine, protecting the polyamide membranes from chemical degradation.
• Anti-Scalant Dosing & Softening: High-precision dosing systems inject scale inhibitors that alter the crystal structure of hard calcium and magnesium ions, keeping them dissolved in the reject stream rather than crystallizing onto the membrane surfaces.

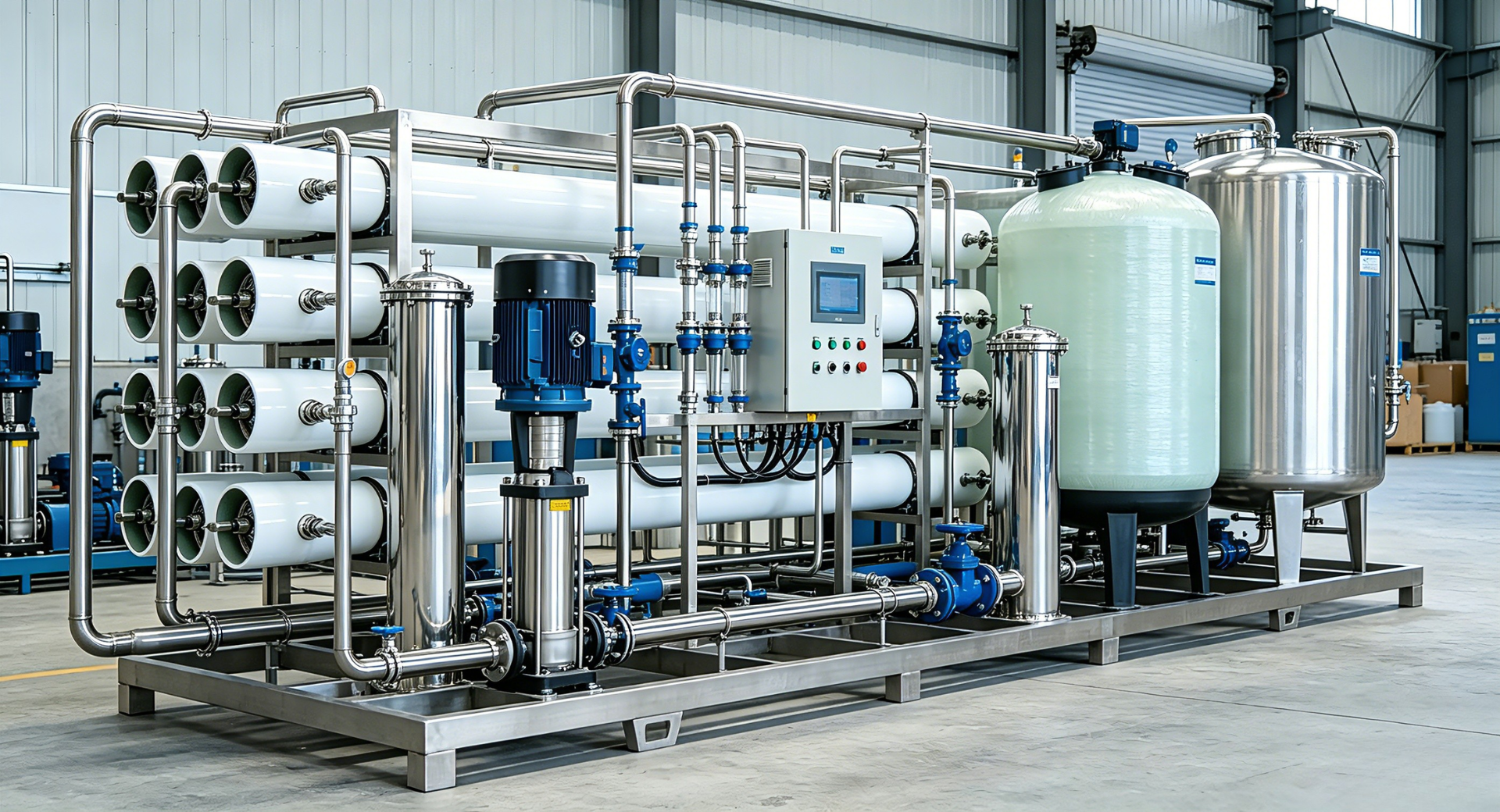

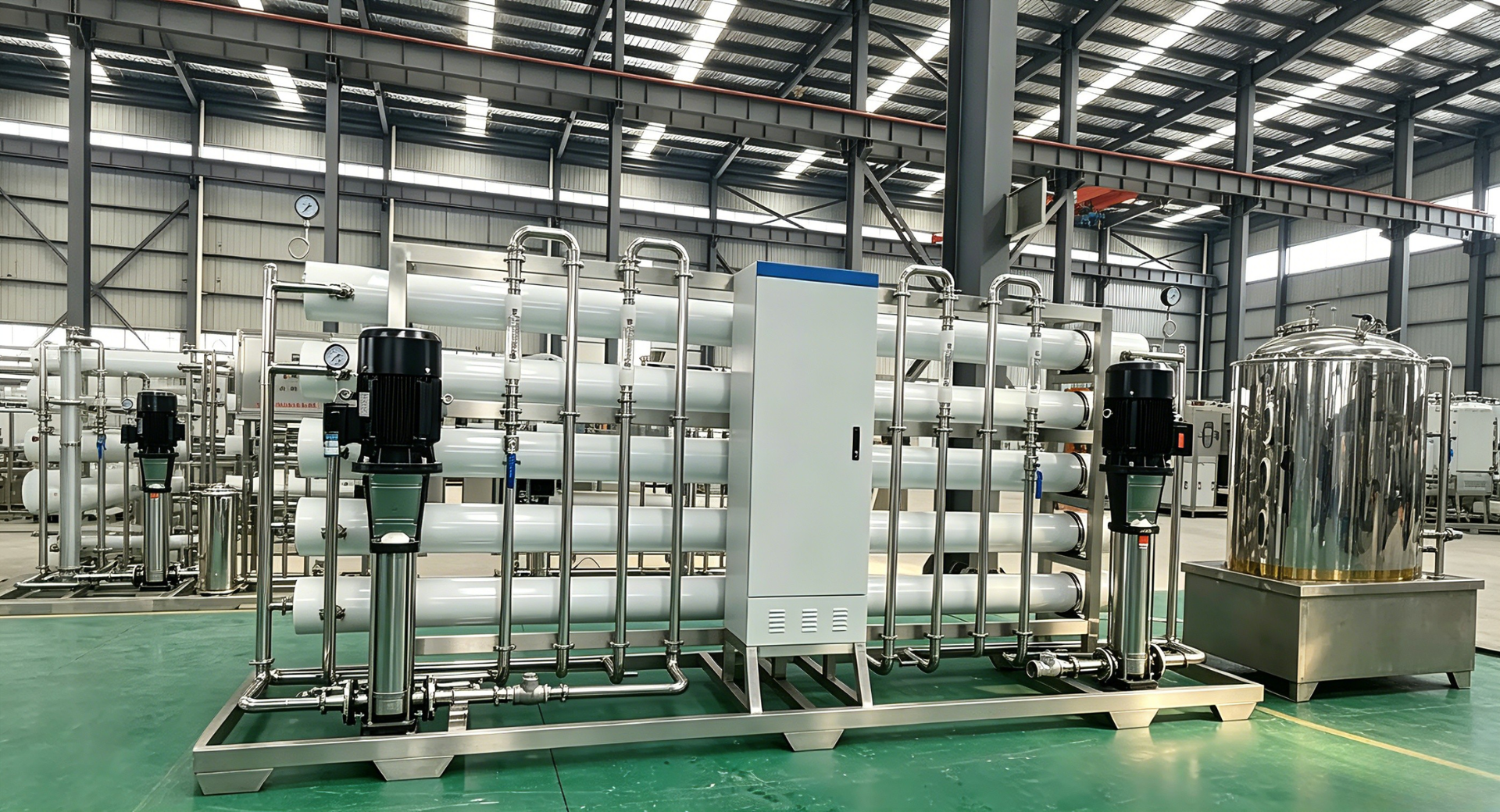

Phase B: Core Reverse Osmosis Skids

This is the purification center of the plant. Depending on the target output quality, configurations range from standard single-pass skids to advanced two-pass reverse osmosis systems engineered for ultra-pure water loops, pharmaceutical compounding, or high-pressure utility boiler feed infrastructure.

Phase C: Integrated Clean-In-Place (CIP) Skids

Over extended operation, trace membrane accumulation is inevitable. An integrated Membrane Clean-In-Place (CIP) system allows plant operators to perform periodic, automated chemical flushes through the membrane vessels without dismantling the equipment, completely restoring membrane flux and significantly extending element lifespans.

3. Real-World Applications Across Water Treatment Industries

Modern water treatment industries depend heavily on high-recovery RO configurations to maintain strict production standards and protect factory plumbing infrastructure:

• Commercial Beverage and Bottling Plants: Purifies raw groundwater or municipal lines to construct a pristine, mineral-balanced ingredient water base for carbonated soft drinks, juices, and bottled water production lines.
• Boiler Feedwater Purification: Eliminates dissolved silica and hardness minerals before water enters high-pressure steam boilers, preventing internal scale insulation, localized overheating, and catastrophic tube ruptures.
• Industrial Wastewater Reclamation & ZLD: Reclaims pure process water from wastewater streams, allowing facilities to recycle up to 90% of their factory effluent, drastically lowering raw municipal drawing fees and meeting strict environmental discharge regulations.

4. Technical Buying Guide: Crucial Metrics for Procurement Managers

Procuring a large-scale industrial reverse osmosis system requires looking beyond flow rate and upfront costs. To receive an accurately sized, efficient quote that avoids operational downtime, verify these four essential engineering benchmarks with your supplier:

Evaluation Benchmark	Why It Matters for Your Factory	Technical Goal
Comprehensive Water Analysis	Identifies exact TDS, silica, iron, and Silt Density Index (SDI) levels.	Prevents choosing wrong membrane chemistry.
Hourly Output Capacity ($m^3/h$)	Accounts for peak manufacturing demands, not just daily averages.	Ensures continuous production supply.
Target Permeate Quality	Determines if your process requires single-pass RO or two-pass RO + EDI.	Meets precise application standards.
Automation & Telemetry Level	Controls automated backwashing, pneumatic flushes, and remote tracking.	Lowers labor costs via unattended operation.

Conclusion: Future-Proofing Your Industrial Utility Infrastructure

Investing in a premium, custom-engineered industrial reverse osmosis system is a definitive strategy to protect your production quality, safeguard multi-million dollar machinery assets, and insulate your business from rising water costs and shifting environmental discharge rules.

Partnering with an established global manufacturer like Anhui Xinke Water Treatment Equipment Co., Ltd. ensures your plant is built with world-class component technology, advanced automation, and highly corrosion-resistant metallurgy. This transforms a complex water management challenge into a stable, automated, and highly profitable utility asset for your facility.
