Complete Mineral Water Filling and Packaging Lines

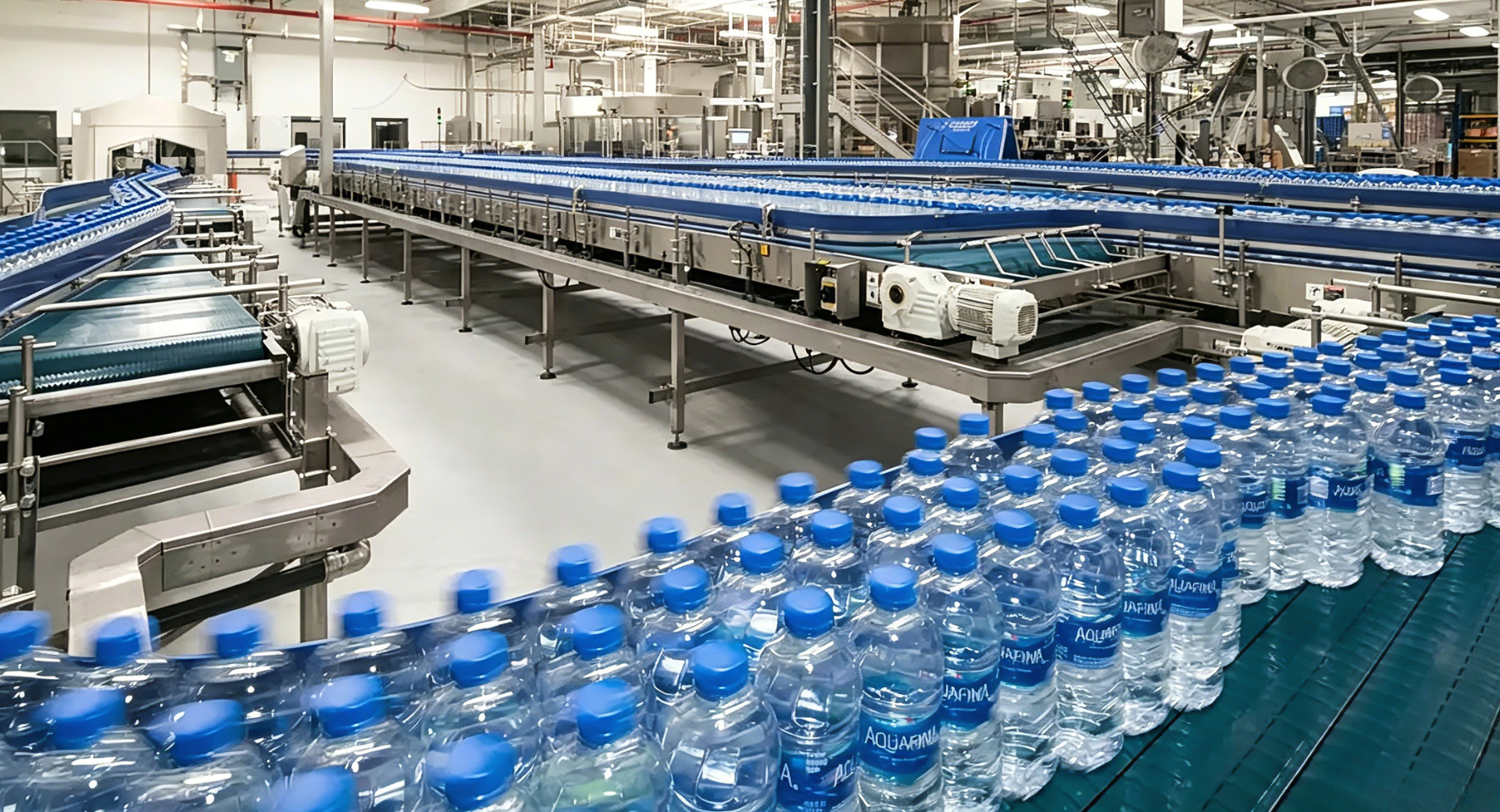

High-Performance Turnkey Engineering: The 30,000 BPH Fully Automatic Bottled Water Production Line Case Study

In the global beverage manufacturing market, profitability rests entirely upon operational efficiency, raw material minimization, and absolute biological safety. For multi-format production facilities deploying large-scale infrastructure, upgrading to integrated Complete Mineral Water Filling and Packaging Lines is the definitive strategy to achieve maximum yield with a low Total Cost of Ownership (TCO).

This comprehensive technical case study breaks down an enterprise-level project engineered by Anhui Xinke Water Treatment Co., Ltd.: a 100% fully automatic 510 ml bottled water production line built to output an exceptional capacity of 30,000 bottles per hour (BPH) and 480,000 bottles per day under rigorous continuous 16-hour operational duties.

Anhui Xinke Turnkey Plant Architecture

Step 1: Water Purification System (WTP)

• Raw Water Intake: High-pressure pumps draw in the source water.
• Pre-Filtration: Sand and carbon filters remove dirt, chlorine, and odors.
• Reverse Osmosis (RO): Advanced membranes remove over 99.8% of salts and impurities.
• Sterilization Loop: UV light and Ozone disinfection ensure the water is 100% safe.

👇 (Purified water flows to the filling line)

Step 2: The Blow-Fill-Cap Combi Block

• Bottle Blowing: Plastic preforms are heated and blown into 500ml bottles using high pressure.
• Air Conveyor: Bottles are moved safely by their necks to prevent contamination.
• High-Precision Filling: Fast, automated valves fill each bottle to the exact millimeter.
• Automatic Capping: Caps are sterilized by UV light and twisted on perfectly.

👇 (Filled and sealed bottles move to the packaging line)

Step 3: Labeling, Coding, & Quality Control

• Smart Conveyors: Motorized tracks smoothly move the bottles forward.
• OPP Hot Melt Labeler: Applies high-speed, cost-effective wrap-around labels.
• Laser Date Coding: Prints clear expiry dates and batch numbers on the bottle.
• Inspection System: Automatically checks fill levels and removes any faulty bottles.

👇 (Individual bottles are ready for bulk packaging)

Step 4: Final Secondary Packaging & Palletizing

Stretch Wrapper: Pallets are tightly wrapped in protective plastic film, ready for the warehouse.

Shrink Wrapping: Bottles are automatically grouped into packs (like 24-packs) and wrapped in film.

Thermal Shrink Tunnel: Heats the film quickly to create a tight, sturdy bundle.

Robotic Palletizer: Heavy-duty robotic arms stack the packs neatly onto shipping pallets.

Project Specifications & Plant Design Matrix

When establishing a state-of-the-art water bottling plant, factory floor layouts must balance precise footprints with optimized accumulation buffers to prevent downstream downtime from throttling upstream filler efficiency. This greenfield turnkey project was executed under strict performance parameters to eliminate manual intervention entirely:

Parameter	Project Technical Specification
Product Classification	Still Mineral Water / Purified Premium Drinking Water
Primary Packaging Format	500ml / 510ml Lightweight PET Bottles
Hourly Output Rated Capacity	30,000 bottles per hour (BPH)
Daily Target Output	480,000 bottles per day
Operational Window	16 Hours per day (Continuous multi-shift duty)
Automation Tier	100% Fully Automatic with Siemens S7-1500 PLC Architecture
Customization Range	Scalable for PET bottles, aluminum bottles, glass bottles, and canning lines

Technical Engineering Breakdown: The A-to-Z Turnkey Scope

1. Advanced Water Treatment Plant (WTP) Infrastructure

The baseline of any high-tier mineral water filling line is its purification matrix. Raw brackish water or spring feeds must undergo systematic reduction of Total Dissolved Solids (TDS) and absolute microbial elimination.

• Pre-Filtration Matrix: Automated quartz sand filtration and active carbon towers remove suspended solids, chlorine, volatile organic compounds (VOCs), and odor profiles.
• Industrial Reverse Osmosis (RO) System: Utilizing specialized Dow/Hydranautics membrane arrays paired with high-efficiency Grundfos vertical multi-stage pumps to filter particles down to molecular levels, yielding a desalination efficiency exceeding 99.8%.
• Dual Sterilization Loop: Purified water undergoes final polishing via intensive Ultraviolet (UV) sterilization chambers followed by precise ozone ) dosing systems to maintain lasting microbiological stability within the storage tanks prior to the filling header.

2. High-Speed Blow-Fill-Cap Combi Block

Traditional stand-alone machinery configurations suffer from conveyor friction, external particle contamination risks, and expanded footprint requirements. Anhui Xinke addresses this by deploying an integrated Blow-Fill-Cap Combi Block System.

1.Automated Preform Feeding & Conditioning:Step 1.

Bulk preforms are lifted via an automatic preform feeder into a sorting unscrambler, aligned, and passed through an infrared rotary heating oven where internal core temperatures are modulated for precise polymer distribution.

2.High-Pressure Stretch Blow Molding:

Preforms enter heavy-duty molds manufactured from corrosion-resistant alloys. A synchronized stretch rod descends while multi-stage high-pressure compressed air (up to 40 bar) inflates the preform into the final 510ml PET container structure.

3.Hygienic Positive-Pressure Conveying:

Freshly blown bottles are transferred instantly by synchronized starwheels by their neck rings directly into the filling carousel, entirely eliminating floor-level flatbed contamination risks.

4.High-Precision Volumetric Filling:

The filling station utilizes non-contact, high-precision electronic filling valves. Electromagnetic flow meters guarantee fill-level accuracy within , accelerating fluid dynamics while preventing secondary product foaming.

5.Servo-Controlled Capping Station:

Caps are fed through an integrated UV decontamination chute. A magnetic constant-torque capping head secures the closures with precise, non-destructive rotational force to guarantee an airtight, leak-proof seal.

3. Precision Labeling, Coding, and Inline Quality Inspection

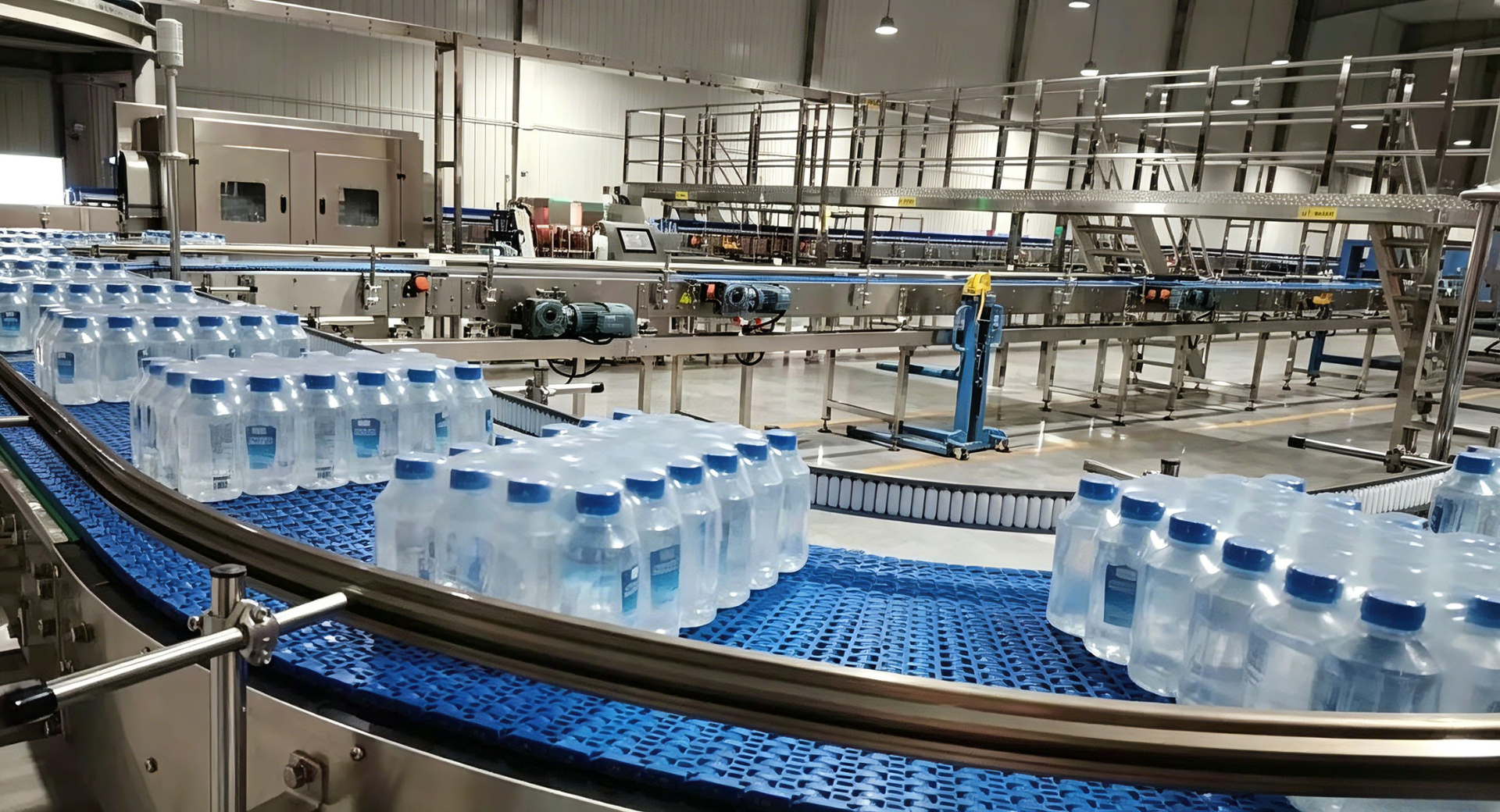

Once capped, the filled bottles pass into the dry end of the complete packaging line via integrated smart motorized accumulation conveyors.

• OPP Hot Melt Labeling Machine: For high-volume 500ml beverage lines, OPP hot melt wrap-around labeling offers the lowest material cost per bottle while delivering high-speed application accuracy. Alternate configurations support decorative shrink sleeve labeling or premium self-adhesive labeling systems, completely customizable based on brand aesthetics.
• Industrial Inkjet / Laser Coding: A high-speed coding system prints multi-line alphanumeric production dates, batch codes, and expiration data onto the bottle shoulders or caps in real time.
• Multi-Tier Inspection Systems: Downstream sensors instantly reject bottles displaying non-conforming fills, misaligned caps, or missing labels via automated pneumatic ram sorters.

4. Secondary & End-of-Line Packaging Automation

To transition individual bottles into industrial logistics units without human handling, the line concludes with a powerful, automated secondary packaging matrix.

• Automatic Film Shrink Wrapping Machine: Bottles are grouped into standardized multi-packs (such as 4×6 or 6×4 configurations) via smart lane dividers, wrapped in durable polyethylene film, and passed through an energy-efficient thermal shrink tunnel to create rigid bundle packs.
• End-of-Line Robotic Palletizer: Heavy-duty mechanical arm arrays or high-level gantry palletizers arrange the film packs into optimal structural patterns onto shipping pallets.
• Automatic Stretch Wrapping Machine: Finished pallets are immediately enclosed in heavy-duty stretch film with top-sheet indexing to secure the load against moisture, shifts, and dust during container transport and global logistics distribution.

Why Leading Beverage Producers Partner with Anhui Xinke

Engineering a high-speed production system capable of operating at 30,000 bottles per hour requires deep material expertise and advanced automation control. Anhui Xinke Water Treatment Co., Ltd. delivers competitive advantages that mirror the rigorous standards of global engineering giants:

Material Integrity for Hostile Environments: All wet-end components, piping manifolds, and filling valves are machined from premium anti-corrosive alloys, including duplex stainless steel (2205/2507), 316L stainless steel, and heavy-duty FRP rubber-lined vessels to ensure lifelong resistance against sanitization cycles and high-salinity feeds.

• Total Customization Capabilities: While this case study showcases a fully automatic 510ml PET line, Anhui Xinke customizes industrial architectures for aluminum bottles, glass bottles, and high-speed canning lines, tailoring every system to the client’s explicit container geometry.
• Industry 4.0 Smart Automation: The entire processing stream is managed centrally via a Siemens S7-1500 PLC platform, equipped with 4G/5G remote data monitoring and Efficiency Improvement Tools (EIT) to log real-time diagnostics, reduce waste, and maximize overall equipment effectiveness (OEE).
• Comprehensive Turnkey Global Execution: For first-time investors entering the beverage landscape, Anhui Xinke manages the full project life cycle: from engineering floor plan layouts and custom system design to international logistics, customs clearance, on-site installation, operational training, and a protective 2-year core spare parts package.
